 Test and Measurement





PKNC offers wide range of Industrial power supplies for test and measurement and other professional applications.We design and produce custom and special units for physical research (for examle : lasers) and any kind of developpement activities too.Some types has unique characteristics, for example ultra fast setting-up time or extrimetly high current capabilities.High voltage supplies are also available.

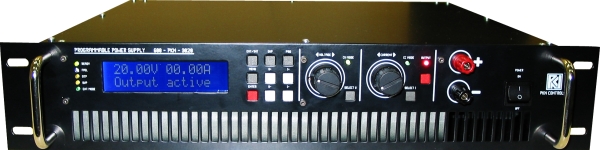

Standard programmable power supplies:

Nr
 Type
 Power
 U_out
 I_out
 Resolution
 Mech.size
 Weight
1
 1000- PKN- 10100S
 1000 W
 0 - 10 V
 0 - 100 A
 10 mV
 2 rack unit
 8,9 Kg
2
 1000- PKN- 2050S
 1000 W
 0 - 20 V
 0 - 50 A
 20 mV
 2 rack
8,9 Kg
3
 1000- PKN- 4025S
 1000 W
 0 - 40 V
 0 - 25 A
 50 mV
 2 rack
8,9 Kg
4
 1000- PKN- 6016S
 1000 W
 0 - 60 V
 0 - 16 A
 100 mV
 2 rack  8,9 Kg
5
 1000- PKN- 10010S
 1000 W
 0 -10 V
 0 - 100 A
 200 mV
 2 rack  8,9 Kg
6
 1000- PKN- 3003S
 1000 W
 0 - 300 V
 0 - 3 A
 500 mV
 2 rack  8,9 Kg
7
 2000- PKN - 20100S
 2000 W
 0 - 20 V
 0 - 100 A
 10 mV
 2 rack  9,5 Kg
8
 2000 - PKN - 4050S
 2000 W
 0 - 40 V
 0 - 50 A
 20 mV
 2 rack  9,5 Kg
9
 2000 - PKN - 6033S
 2000 W
 0 - 60 V
 0 - 33 A
 50 mV
 2 rack 9,5 Kg
10
 3000 - PKN - 4075S
 3000 W
 0 - 40 V
 0 - 75 A
 20 mV
 2 rack 11,3 Kg
11
 3000 - PKN - 20150S
 3000 W
 0 - 20 V
 0 - 150 A
 50 mV
 2 rack 11,3 Kg
12
 3000 - PKN - 7540S
 3000 W
 0 - 75 V
 0 - 40 A
 100 mV
 2 rack 11,3 Kg
13
 4000 - PKN - 5080S
 4000 W
 0 - 50 V
 0 - 80 A
 50 mV
 2 rack 14,2 Kg
14
 5000 - PKN - 50100S
 5000 W
 0 - 50 V
 0 - 100 A
 100 mV
 2 rack 15,6 Kg




PKNC FP series (new) : ultra fast rise \ fall time DC  power supplies with dinamyc current sink capabilities
                          Power range : from 600W - 3KW
                          Output voltages : 10V - 300V
                          Output current range : 6A - 300A
                          Setting time : tr,tf < 500us (both rise and fall times load or no load condition)



PKNC FB series (new) : Bipolar output and very fast setting speed
                          Power range : from 600W - 3KW
                          Output voltages : +\- 10V - +\-200V
                          Output current range : +\-3A -+\- 300A
                          Setting time : tr,tf < 500us (both rise and fall times load or no load condition)


 Control Method:
Both units are controlled by internal programmed reference or external analog Voltage\Current reference signal.Other digital communication interfaces are also available.The control side and power outputs are galvanically isolated in several cases.
